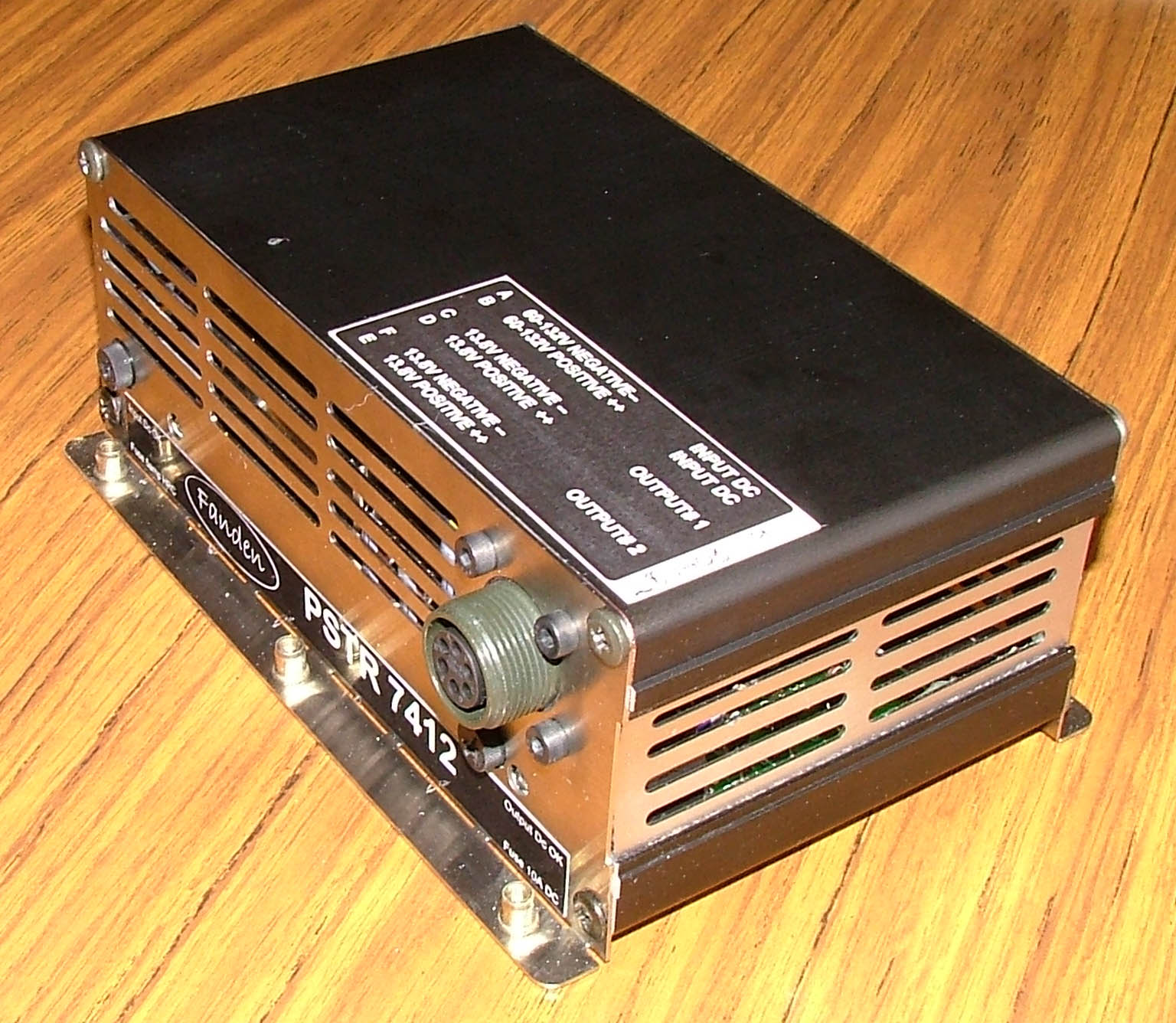

PSTR 7412 : At a Glance:

  • Wide Input Range : 60 to 130 V D.C. at full rating

  • No input voltage selection needed.

  • Front panel input fuse.

  • Inrush current limiting on turn on.

  • Completely floating input & output.

  • Isolation >1 KV. RMS input-output & input-case (there are 50 V caps between output & case)

  • Reverse Polarity protection. (series diode)

  • Reverse Polarity Indication (LED)

  • Output 13.8 V DC. +/- 2%

  • Load Current 10 amp max., 6 amps RMS e.g:10 Amp at 20% with 3.6 Amps continuous.

  • Output can be shorted indefinitely without damage. Supply restarts automatically.

  • Over voltage protected at >15 volts.

  • Efficiency typ. 82% at full load. No Fans.

  • Temperature -10 to +60 C, no de-rating.

  • Each Product Burnt In 100%

  • Regulation 1% typ. over current & input Volts.

  • Output Noise & Ripple less than 20mV RMS in 100 MHz BW.

  • Visual indication of DC output.

  • 6 bolt flange mounting

  • 190 mm Wide, 75 mm High, 120 mm Deep

  • Vibration tested.

  • MTBF > 125,000 hr per MIL-HDBK-217F

  • Australian Design and Manufacture

  • Wholly Australian owned Company
